Cold Storage Plant Setup: Complete Process Explained

If you consult someone who has constructed a cold storage facility, you will learn that such a facility is not just a giant refrigerator with concrete walls. It is a complex system in which insulation, refrigeration capacity, airflow and civil engineering must work together. If you get one element wrong, the whole facility will not work properly.

If you are about to build a cold storage plant for the first time for agricultural products, medicines, dairy or processed food, understanding the whole process of building the plant is more important than simply selecting the brand of equipment. Early decisions in the process are very costly to reverse.

This guide explores what components need to be considered when constructing such a facility, its process and steps involved, some of the errors that could hamper the work of a novice builder, as well as the current situation in the industry. This guide is written from a practicing builder's perspective instead of a textbook one because although building a cold storage may appear simple on paper, in practice, it is rarely so.

What Is a Cold Storage Plant, and Why Does It Matter?

Cold storage is a specialized facility that was established to store perishables such as vegetables, fruits, dairy products, meat, seafood, and medicines in a low-temperature environment for a long time. Unlike a small refrigerated walk-in room, a cold storage facility is a complete system, i.e., it includes the insulation system, the refrigeration system, the air management system, and the control system.

The fundamental concept is uncomplicated: it is enough to remove heat from the place and manage humidity for the prevention of decay.

Key Concepts and Fundamentals

A few fundamentals shape every facility of this kind, regardless of size or commodity:

• Insulation envelope: PUF or polyurethane foam panels are quite preferred and used in the industry and are usually between 100mm and 150mm thick according to the temperature zone. They are used to form the walls, ceiling, and floor of the structure.
• Refrigeration load: By analyzing product type, ambient temperature, frequency of door opening, and the temperature to be maintained, it is easy to determine the size of compressor and evaporator.
• Temperature zones: A facility may have different areas for chillers (2–8 degrees Celsius), freezers (-18 degrees and below) and deep-freezing.
• Floor insulation and vapor barrier: It is not always considered very important; however, it is true that moisture getting through the floor slab is among the major obstacles against ice formation and damage to the structure.
• Air circulation design: The placement of evaporator and airflow are important and responsible for the presence of constant air temperature in the room and the presence of hot air pocketed at the doors and the ceiling.

Get these fundamentals wrong at the design stage, and no amount of premium equipment fixes it later.

If you're planning a new facility, our range of cold storage solutions covers insulated panels, refrigeration systems, and doors sized to your load and temperature zone.

Benefits of a Modern Cold Storage Facility

Proper cold chain infrastructure is important because it not only prevents spoilage but also allows businesses to accomplish a lot more things.

• Extended shelf life — products that would spoil within a few days can be stored for weeks and months if temperature and humidity are maintained properly.
• Price flexibility — It enables farmers and traders to keep goods for a longer time instead of selling them at harvest time when prices tend to be the lowest.
• Export readiness — Multiple exporting markets require that farm produce meets cold chain compliance during shipment; if this chain is not valid, produce simply cannot be exported.
• Reduced wastage — It is well known that India has post-harvest losses that are above 10% for perishables; cold chain technology is among very few technologies that can meaningfully lower this statistic.
• Pharma and vaccine storage — Temperature sensitive medical goods have zero tolerance for cold chain break since such goods cannot be stored properly without compliance with regulations.

Cold Chain Numbers Worth Knowing

The current cold storage facilities in India are largely designed for one type of commodity, most of which are meant for storing potatoes and mostly situated within a few regions. However, this scenario is witnessing a big change. Multi-chamber cold storage units that take care of food processor, exporter and organized retailing requirements are being preferred given the need for temperature variations in the storage process.

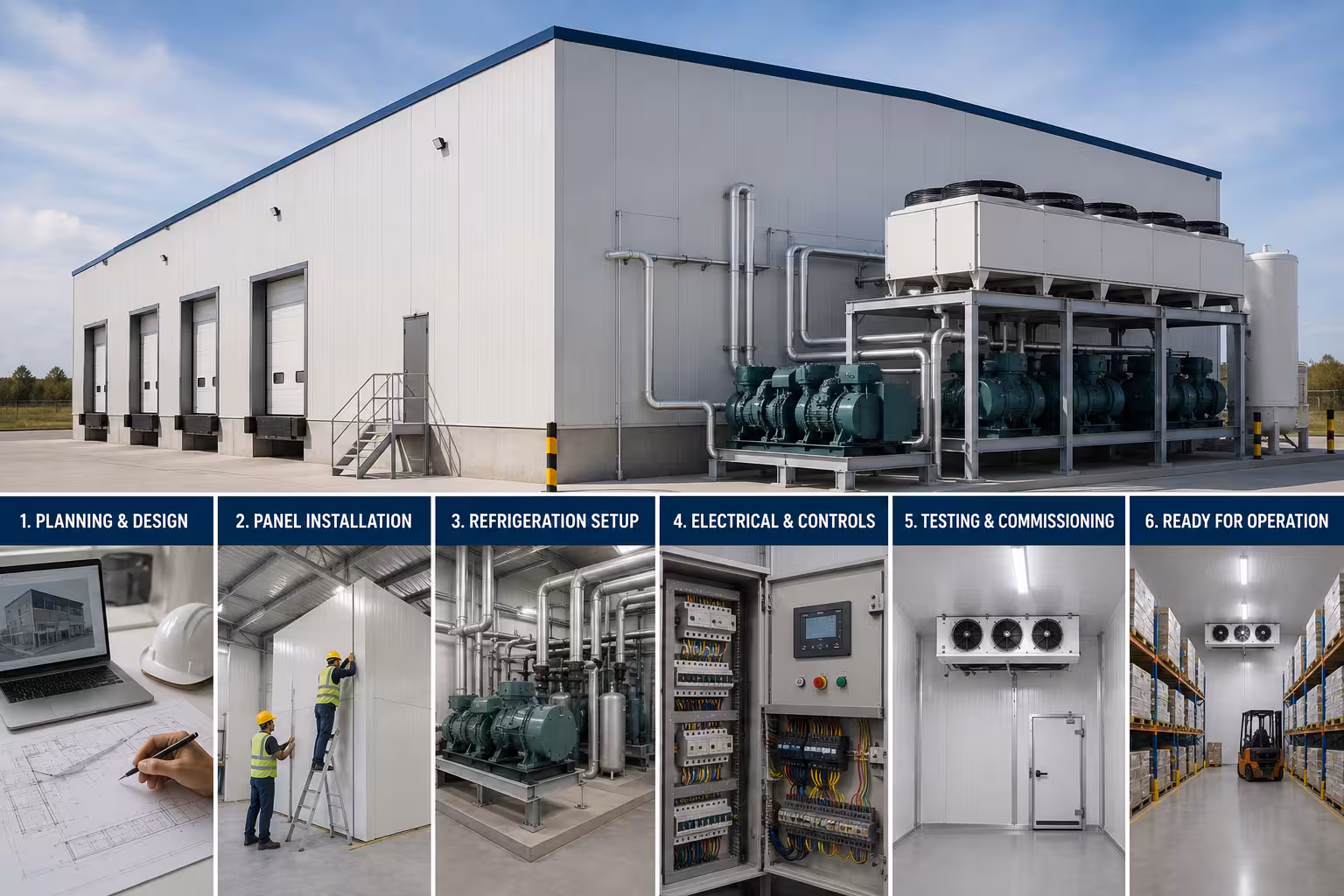

Cold Storage Plant Setup: The Complete Process, Step by Step

Cold storage facility construction occurs in a fairly uniform flow; however, the specifics can differ depending on its location, capacity, and item to be stored.

Step-by-Step Cold Storage Plant Setup Process

1. Feasibility and load assessment. Before the construction process begins, storage needs are determined: what will be stored, expected volume, temperature, and seasonal throughput. The result is determined facility dimensions.
2. Site selection and civil planning. The construction process presents both civil engineers and contractors with specific difficulties. These include soil bearing capacity, proximity to power, access ways for loading trucks, and water supply; all are much more important than it seems to first-time developers.
3. Structural design and panel specification. The design of the building's envelope is based on insulation performance and not merely the amount of space needed. The amount of insulation to be used in panels and joints depends on the temperature and how often the doors will be open.
4. Refrigeration system selection. This is the phase where you can make decisions regarding ammonia and freon (HFC) systems, compressor rack configuration, and evaporator design. While ammonia is the most commonly used refrigerant in larger cold storage units because of its efficiency, freon is often preferred for small scaled or multi-zoned installations due to ease of maintenance.
5. Civil and structural construction. The structure, floors, and the shell of the building is erected first, with the construction being done to tolerances that support the insulated panel installation.
6. Insulation and panel installation. PUF panels are installed in walls, ceilings and floors, with particular care given to sealing joints, as one of the most common forms of energy loss and water damage is the result of poorly sealed joints.
7. Refrigeration equipment installation. The facility is outfitted with piping, condensers, evaporators, compressors, as well as electrical wiring, control panels, and installation of backup power systems.
8. Doors, racking, and material handling setup. Insulated doors as well as dock levelers are installed and heavy-duty racking or bulk floor storage is done based on the operations of the facility.
9. Testing and commissioning. Initially, the equipment works without any material, temperature is checked for uniformity and stability, and then it is loaded and controlled until the equipment is handed over to the user completely.
10. Handover and staff training. Operators are taught how to control temperature, defrost cycle and perform basic troubleshooting during operation; one should not forget that if something goes wrong with equipment, it is the operator who would be responsible.

Best Practices for Turnkey Cold Storage Construction

There are certain trends that show up in enough projects that are worth mentioning. There are practices that work well:

• Size for peak load, not average load. Reducing the size of the refrigeration system to save on capital costs often has serious implications during peak seasons.
• Don't skimp on floor insulation. Although problems are not noticed once the systems are put into operation, it is very expensive to fix floor heave and ice buildup issues caused by improperly installed insulation.
• Plan door placement around actual truck movement. One major contributor to temperature loss is door traffic, and placement is more critical than most designs account for.
• Match the refrigeration system to the commodity. A cold room for storing different products must show more adaptable zoning than one that stores only a single type of product.
• Bring the refrigeration contractor in early, before designing the infrastructure for civil use. Refitting cold storage into an existing structure is much more expensive than designing the two at the same time, which is why it makes sense to treat turnkey cold storage as a process rather than two separate contracts.
• Budget for maintenance from day one. All compressors, evaporators, and door seals require periodic maintenance; ignoring service will decrease the life span of the facility.

Industry Trends in Cold Storage Construction

Cold storage construction has moved well past the basic insulated-shed model of a decade ago.

Innovations in Insulation, Refrigeration, and Monitoring

• IoT-based temperature monitoring — real-time monitoring devices and remote notifications enable operators to identify an anomaly in a matter of minutes rather than finding out about spoiled goods during the next physical inspection.
• Energy-efficient refrigeration — some of the modern buildings are equipped with variable-frequency drives (VFDs) on compressors and improved condenser designs that significantly reduce energy consumption.
• Multi-chamber, multi-commodity design — instead of using potato storage rooms only for storing potatoes, present enterprises are more open to the idea of having multifunctional storage rooms that may store diverse products at various temperatures under one roof.
• Controlled atmosphere (CA) storage — to achieve higher quality products, oxygen and CO2 levels are now adjusted together with temperature so that products can last even longer than in cases where only temperatures are controlled.
• Solar-assisted power backup — it has become extremely important for operations to have continuous access to electricity, which is the reason for the ever-increasing number of hybrid solar-diesel-grid systems used, especially where the supply from the grid is problematic.
• Government-backed cold chain schemes — subsidy initiatives keep influencing the locations and methods of the construction of emerging infrastructure, particularly in facility areas relating to agriculture.

All of the signs are genuinely backed, since each carries with it some recurring problem experienced in regular plant operations.

Common Challenges in Cold Storage Projects (and How to Solve Them)

All these projects are faced with a number of recurring difficulties. Identifying them at an early stage is half the solution.

Real Problems, Practical Fixes

Power reliability. Frequent power outages result in a dependence on diesel generators which are expensive to run in the long term.

Fix: Hybrid backup systems and cooling systems that are built for load-shedding.

Underestimated refrigeration load. This results in an installation that does not maintain the desired temperature after a month or two.

Fix: Total load calculations should be verified by the refrigeration contractor and not just the civil engineer.

Panel joint failures. Inadequate sealing can lead to condensation, mildew, and slow degradation of the insulation.

Fix: Employ qualified installation teams and check joint areas while the installation is being completed.

Skilled manpower shortage. Finding technicians proficient in both mechanical and food safety aspects of cold storage is tough in most areas.

Fix: Include training and a handover period in the project schedule instead of relying on workers to learn on the job.

Compliance treated as an afterthought. Regulations imposed by the FSSAI and pharmaceutical cold chain are usually only revealed during inspections.

Fix: It is important to incorporate compliance from the onset.

The root of most of these issues can be traced to a single cause: treating cold storage construction first as a building project and only second as a refrigeration project, in situations where successful turnkey cold storage projects require an approach of treating it as both right from the start.

Frequently Asked Questions About Cold Storage Plant Setup

What is a cold storage plant?

A specialized facility equipped to store perishable products at controlled temperatures thanks to its insulated structure and appropriate refrigeration system. This is done primarily to minimize spoilage and prolong shelf life.

Why is a cold storage plant important?

It helps save money on perishables, minimize post-harvest losses, comply with export requirements, and allow the storage of products for later sale instead of harvesting at low prices.

How much does it cost to set up a cold storage plant?

Prices of facilities can be quite different due to their capacity, temperature zones, refrigeration type (for example, ammonia or freon), location, and civil works complexity.

What's the difference between ammonia and freon refrigeration systems?

There are many advantages of ammonia systems over freon-based alternatives, including better energy efficiency when it comes to large industrial applications, while freon-based systems are often preferred in smaller, multi-zone systems due to lower requirements in terms of regulatory compliance and maintenance.

How long does it take to build one?

The time it usually takes to finish a project depends on both its volume and complexity, though for most turnkey projects the timeframe varies from several months for smaller sites to over a year for bigger, multi-chamber industrial installations.

What temperature should it maintain?

It totally depends on what you are storing. Normally storage at a temperature range of between 2 and 8 degrees centigrade is called chill storage, storage at lower than -18 degrees is called frozen storage, and, in addition, sometimes such facilities have several zones.

Can an existing building be converted into one?

At times it is necessary to consider the load bearing capabilities, insulation upgrades as well as proper placement of the equipment. In many instances, dedicated construction is more economically viable in the future.

Conclusion

The process of building a cold storage facility is essentially a matter of putting together the pieces in the right order — carrying out feasibility and load calculations is the first thing to do, then comes the structural and thermal insulation design, we need to have refrigeration engineering incorporated throughout, and the commissioning of a construction project is just as important as the construction process itself. In case some stages are skipped or diminished, various problems arise in the form of energy bill increase, temperature fluctuations, or loss of products.

Companies that benefit the most from their facilities are seldom those who look for only the best price. Those are instead the companies who consult with a knowledgeable contractor early on to size their equipment according to true peak load and include maintenance costs in their budgeting plans, rather than assuming these will be an afterthought.

Whether you're preparing to build your first cold storage facility or looking to add to an existing cold chain facility, the concepts discussed in this article will help you weather some of the inherent issues regarding insulation, load calculation, zoning, and commissioning. Get them right and you'll end up with a piece of equipment which will pay for itself over the years rather than being a continuous drain on your resources.
