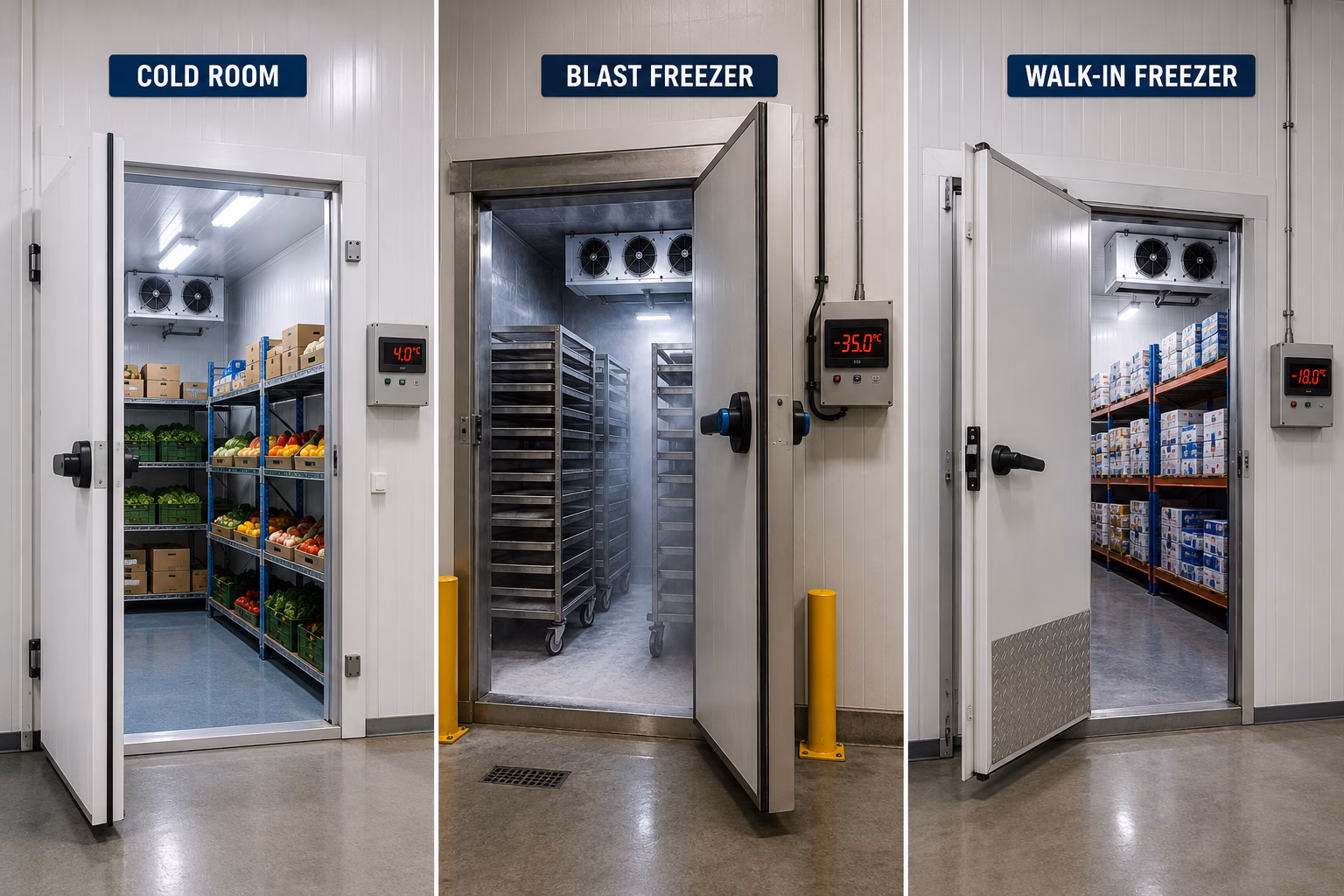

PUF Panel for Cold Storage: Cold Room vs Blast Freezer vs Walk-in Freezer

Choosing the ideal PUF panel for cold storage is among the most important decisions made in any refrigerated infrastructure project. Even though cold rooms, blast freezers, walk-in freezers, and IQF tunnels look structurally similar, as insulated enclosures with a refrigeration unit, they operate under different temperature ranges, thermal loads, and usage patterns which require a different specification of the panel.

Incorrect specifications seldom manifest directly in the beginning. Rather they happen slowly over time and can be seen in longer run-times of the equipment, higher energy costs, water developing at the overlaps of panels, and shorter product durability. For facility owners and project engineers, there is nothing more cost-effective than understanding those differences from the beginning.

The guide talks about the differences in the PUF panel's requirements and specifications in line with the cold storage systems, including cold rooms, blast freezers, walk-in freezers, and IQF systems, while also discussing aspects like thickness, density, and material so that one can choose the best panel for procurement based on technology rather than assumption.

What is a PUF Panel for Cold Storage?

Key Concepts and Fundamentals

PUF denotes Polyurethane Foam. A PUF panel is, in essence, a sandwich construction consisting of two metal layers (generally pre-painted GI, stainless steel, or aluminum) with a solid core of polyurethane foam inserted between them using a process of high pressure injection.

It is the foam core that does the real work as it has one of the lowest thermal conductivity values of all materials used commercially for insulation. This means that heat finds it difficult to go through and that is why a PUF panel used for cold storage has become an industrial standard, thus replacing traditional approaches like insulated brick-and-mortar chambers and thermocol-based structures.

A few things define how well a panel performs:

• Density – The density is usually 40 kg/m³ for normal refrigeration but can be made a bit more for abnormal situations.
• Thickness – The thickness varies from 60mm to 150mm+, depending on the temperature that must be maintained in the room.
• Skin material – It determines the longevity of the material, its sanitary compliance, and resistance to corrosion.
• Joint design – The joints can be either camlock or tongue-and-groove so that there is no heat bridge created in the joints.

All of these methods are not "the one and only." However, it is when the confusion truly begins; when, indeed, a cold room and a blast freezer, as well as a walk-in freezer, strain the panel in their own ways.

If you're specifying panels for a new build, our PUF Panels page covers full thickness, density, and skin material options across our panel range.

PUF Panel for Cold Room: Where It Fits in the Cold Chain

Understanding Cold Room Temperature Zones

Cold rooms usually maintain a temperature interval between 0º C to 8º C. It may remind you of fruit or vegetable storage, refrigerated warehouses for dairy products or cold rooms for distribution of medicines.

Because the difference in temperature between the inside and the outside is not significant, a PUF panel for cold room applications is capable of functioning effectively at a thickness of 60mm to 80mm and with a foam density of 40 kg/m³.

A case in point is that an average size trader in Punjab trading in potato and onion could be storing the produce keeping it at 4°C, whereas a seafood supplier preparing to export shrimp is faced with maintaining storage and waiting for freezing at -30°C. In the former case, using thicker and heavier insulation would mean incurring additional expense without achieving any energy savings.

Cold rooms are lined with doors that open and close frequently to allow staff access to storage containers around the clock. This means that close-up sealing of the seams between cold room panels is as essential as the thickness of the composite, as a badly sealed joint results in moist air entering the cold room which leads to ice formation and mold growing in the joints.

PUF Panel for Blast Freezer: Handling Rapid Temperature Drops

How Blast Freezing Differs From Standard Storage

Blast freezers operate differently than other freezers. Their function is to bring the temperature from room temperature all the way down to -35°C to -40°C in a matter of hours. The purpose of blast freezers is to stabilize the cell composition and prevent huge crystals from affecting the consistency of the product. This is especially important for seafood, meat, and ready-made food producers.

The rapid cooling process creates a lot of pressure on the insulation. PUF panel meant for blast freezer rooms usually requires:

• Its thickness should be from 100mm to 150mm.
• Higher density foam (42–45 kg/m³) to provide structural stability due to thermal cycling.
• Strengthened joints as the repeated expansion-contraction cycle of the freeze-thaw process is more severe than in an ordinary standard cold room.

An industry realization worth highlighting is that many novice cold storage investors tend to overlook the requirements for insulation in blast freezers by following the standard specifications for cold stores. The outcome of this mistake is inefficiency of compressors, high energy consumption, and panels that accumulate moisture within two years of use. Thus, in designing blast freezer plants, proper engineering is necessary and not merely simplified cold store projects.

PUF Panel for Walk-in Freezer and IQF Freezer: Getting the Match Right

Actionable Tips for Choosing Thickness and Density

Walk-in freezers can be classified midway between cold chambers and blast freezers, as they are kept at a temperature of approximately -18°C to -22°C, as opposed to quick freezing. In cases of walk-in freezers, the proper installation thickness of the PUF panels should be in the range of 80 to 100mm of regular density foam, because the temperature is maintained instead of changed swiftly.

IQF (Individually Quick Frozen) chillers act similar to blast chillers, with the added complication of a continuous flow of products on conveyor belts, constant humidity exposure, and more or less continuous working mode. A PUF panel for IQF freezer application normally asks for:

• Panel thickness of 100mm to 150mm
• High humidity or wash-down areas built with stainless steel skins so as to comply with hygiene requirements
• Implementation of vapor barrier detail in all joints to prevent movement of moisture into the foam core

For facility planners, a friendly reminder is to always ask the panel maker about the data sheet of his U-value (thermal transmittance) instead of just looking at thickness. Two panels with the same thickness may behave differently if the foam density and the quality of the skin are different.

Industry Trends Shaping PUF Panel for Cold Storage Design

Innovations in Insulation and Panel Technology

There has been a fast expansion in the cold chain infrastructure for global and Indian markets because of the exponential rise in e-commerce grocery delivery, pharmaceutical cold chains, and food processing activities for export purposes. The panel makers have had to respond to this surge in demand by developing some remarkable innovations in the industry, such as:

• Fire-retardant PUF and PIR cores – now being sought after for industries like pharmaceuticals and food processing because of stringent fire regulations
• Pre-fabricated modular panel systems – reducing the time taken to build the construction on-site from days to weeks
• Automated foam injection lines – influencing foam density uniformity which has a direct impact on performance of insulation in the long run
• Digital thermal monitoring integration – panels now are commonly used in conjunction with IoT devices that are placed in the joints of the project in order to notify the owner of any possible issues with insulation

Sustainability has turned into a serious topic of discussion. Those in charge of the facilities are also concerned about the recycling of products and the use of environmentally-friendly blowing agents in the foaming process; they do not restrict the discussion to just the initial costs.

Common Challenges and Practical Solutions

Real-World Problems Faced in Cold Chain Projects

Even seasoned contractors confront the same problems repeatedly:

Problem: Condensation and ice formation at joints — This typically stems from inadequate sealing of the camlock or omitting the vapor seal stage when installing the equipment. The solutions are correct sealing practices and regular inspections, especially for the blast freezer or IQF equipment.

Problem: Panel sagging or bowing over time — Usually resulting from poor structural support spacing or employing normal density foam in a high load situation. Picking out the right density from the start of the freezer's operation eliminates the chance of this occurring.

Problem: Rising electricity bills despite "insulated" rooms — In most cases, this is due to a disparity in density or thickness, such as in the case when cold room specification panels have been used in a blast freezing environment. However, proper evaluation can save you a great extent of operating costs over the entire lifespan of the panel.

Problem: Hygiene compliance failures in food-grade facilities — The continuous spray-down cycles can induce corrosion in standard GI skin. Change to insulated stainless steel skins in IQF and processing areas will provide a lasting solution to this problem.

Frequently Asked Questions

What is a PUF panel for cold storage used for?

It is used as the main insulating wall, ceiling, and door material for refrigerated and frozen storage spaces ensuring the interior climate stability and heat resistance.

Why is PUF panel for cold storage important?

The insulated panel influences the energy efficiency of the facility, the quality of the stored products, and the durability of structures. If the insulated panel is chosen correctly, the energy load will be reduced, which will result in predictable operating costs during the facility's lifespan.

What thickness of PUF panel is needed for a blast freezer?

In general, the thickness varies between 100mm and 150mm depending on the required temperature and the speed of the freezing process.

Can the same PUF panel be used for a cold room and a walk-in freezer?

In short, one thickness is not an optimal fit for both. Cold rooms do not require as much thickness (60–80mm), as the temperatures are moderate, while a walk-in freezer can need 80–100mm or more for constant sub-zero storage temperatures.

How long does a PUF panel last in a cold storage facility?

When it comes to PUF panels, proper installation and sealing of joints ensures a product life of 20–25 years, unless in extreme conditions like in the tunnels for IQF.

Is stainless steel skin necessary for every cold storage project?

Not really, because it is recommended mainly for places dealing with food processing and the pharma sector as well as wash-down environments where hygiene and corrosion control matter more than in dry storage.

What is the ideal density of PUF panel for cold storage?

The standard for cold storage panels is 40 kg/m³, whereas blast freezing and IQF processes make use of 42–45 kg/m³ of the material for better structural integrity.

Conclusion

Selecting the appropriate PUF panel for cold storage is more than a construction decision; it's a decision that will affect your operations for the next twenty years. A cold room, a blast freezer, a walk-in freezer, and an IQF tunnel all have different demands in terms of thickness, density, skin material, and joint design. If you treat them as if they require the same specifications, you will most likely end up with increased energy costs or premature failure of panels.

The practical takeaway is this: align the specifications of your unit with the temperature range and usage pattern in your environment, ask your manufacturer for real U-value information instead of relying on thickness alone, and ensure proper sealing of joints during the installation process. If you get this right, your refrigeration facility will pay off in good quality, product safety, and years of efficient operation.

Singhania Refrigeration manufactures and supplies PUF insulated panels for cold rooms, blast freezers, walk-in freezers, and IQF systems across Delhi NCR, and can help you specify the right thickness and density for your project. Explore our PUF Panels range, or get in touch to discuss your requirements.
